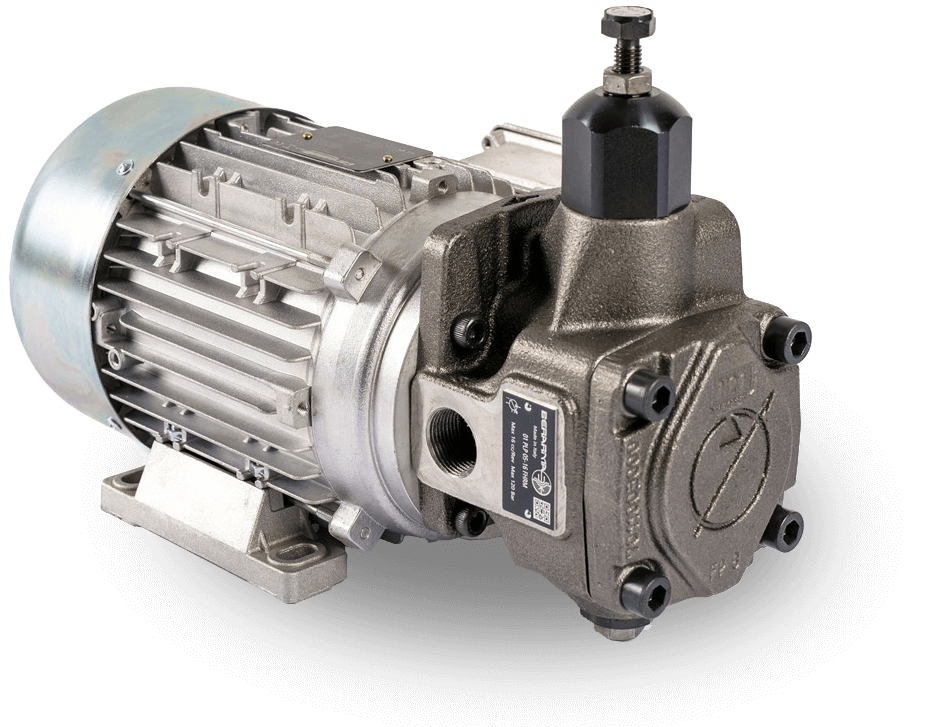

GMP Motor pump unit
The compact, direct-drive integrated motor-pump units consist of Berarma pumps and B3-B14 hollow-shaft electric motors.
The direct coupling system allows all parts between the pump and motor to be eliminated (couplings, bell-housing, supports etc.) and ensures perfect concentricity between the two shafts, avoiding dangerous misalignments which can cause abnormal wear.
GMPs are produced using Berarma size 05 and size 1 pumps (displacement up to 32 cm³/r and maximum working pressure up to 250 bar) and with asynchronous three-phase electric motors with special mounting flange (rated power 0.75 - 7.5 kW).
The GMP is easy and quick to install and can be mounted directly on the powerpack (anti-vibration mounts are recommended).
features and benefits
- Space saving
- Coupling and bell-housing elimination
- Rated powers 0.75 - 7.5 kW
- On demand: special voltages, thermal protection
- High operating pressure
- Excellent response times
- Silent running
- High efficiency
- Long working life
- Economy and simplification of hydraulic system
- Modular design
- Energy saving
